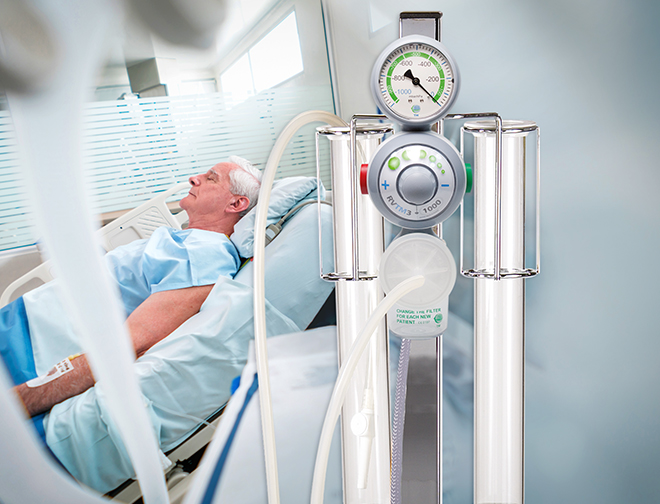

Suction

AEROsuc® | AEROvent®

The AEROsuc® range for the suction of body fluids, secretions and foreign substances pursues a common goal using device-specific different techniques: Manually, pneumatically or electrically generated vacuum provides the user with the equipment for a powerful and reliable suction. From the purely mechanically operating hand and foot suction pumps Rescue and VacUp via the pneumatic AEROsuc® – Vacuum Regulators and Suction Injectors to the electric AEROsuc® – EASY Home models as mains and rechargeable battery versions, we offer you the right technology for outpatient and stationary applications in the areas of public safety authorities, nursing and hospitals. A comprehensive list of accessories enables the devices to be adapted to your specific application scenario.

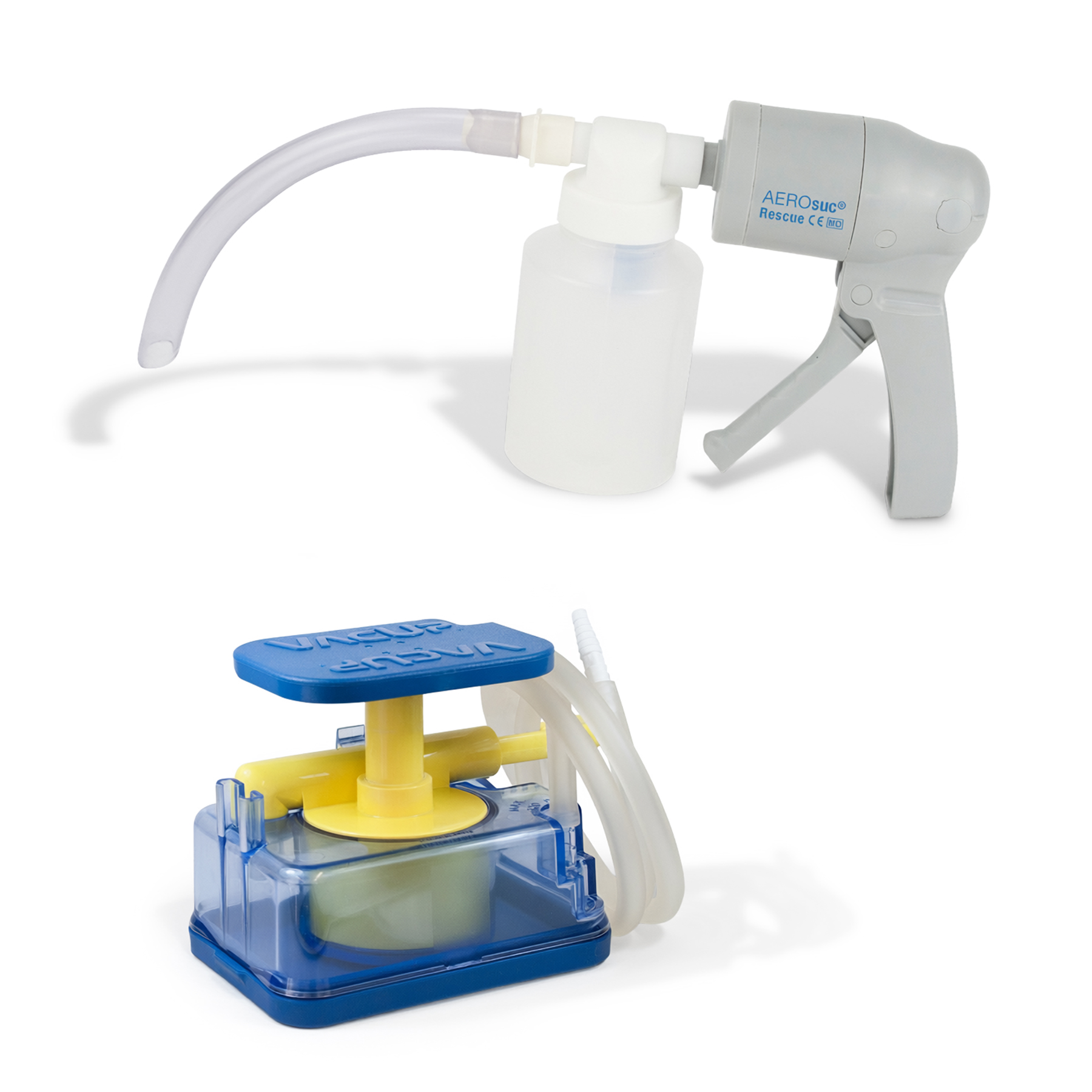

Manual Suction Devices

Manual Suction Devices

AEROsuc® – Rescue
Manual Suction Pump

Manually powered suction device for oropharyngeal suction, according to DIN EN ISO 10079-2. Developed for quick use, energy-independent and maintenance-free. Suitable for adults and children. Max vacuum (within 10 s) -60 kPa, -450 mmHg, -0.6 bar, free air flowrate > 0.33 l/s (20 l/min).

VacUp
Foot Suction Pump

Energy-independent and maintenance-free secretion foot suction pump developed for daily use, according to DIN EN ISO 10079-2. For suction of larger accumulations of blood, mucus, saliva, etc. as well as viscous and solid food components. Powerful at max. vacuum of -82 kPa, -615 mmHg, -0.82 bar with a suction capacity of 72 l/min (air).

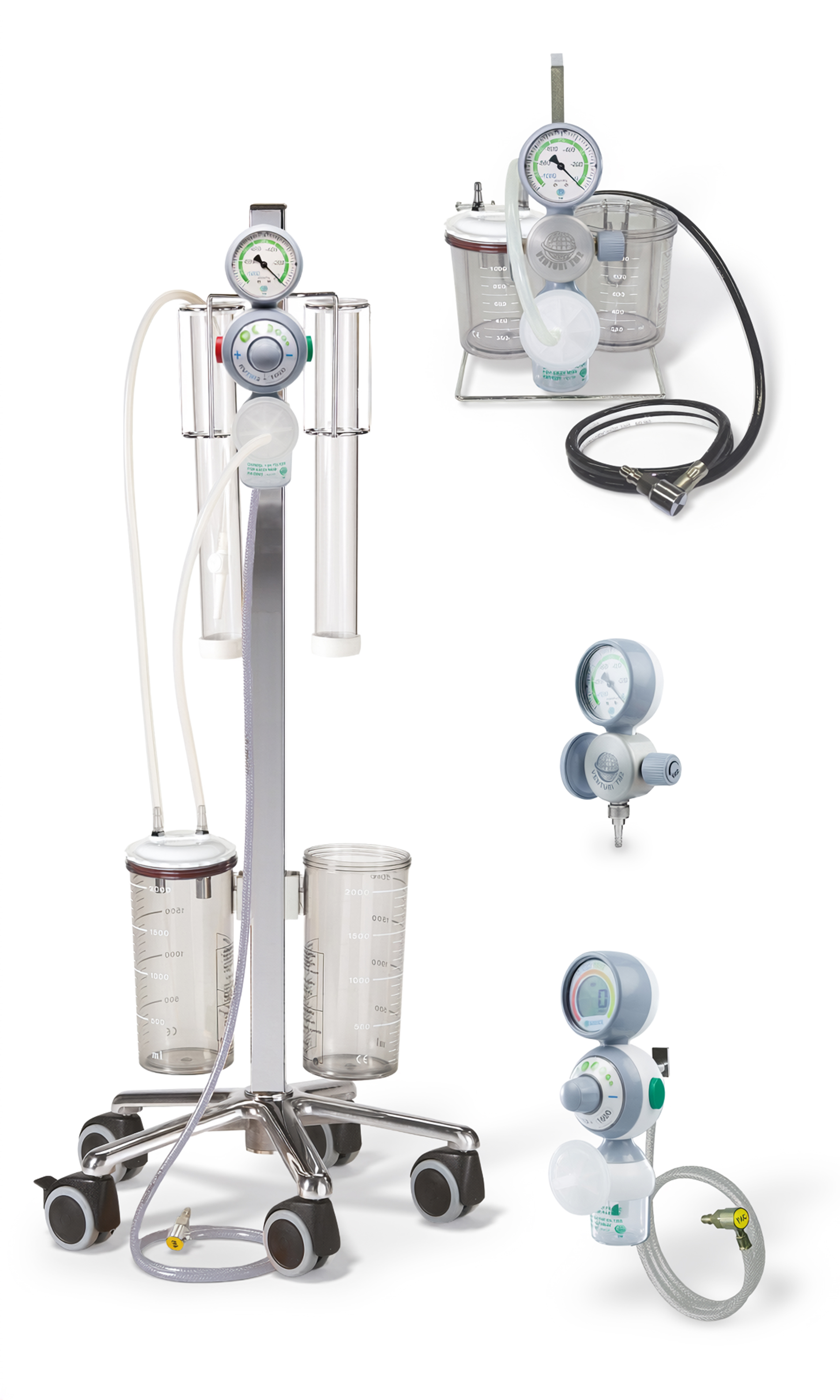

Pneumatic Suction Devices

Pneumatic Suction Devices

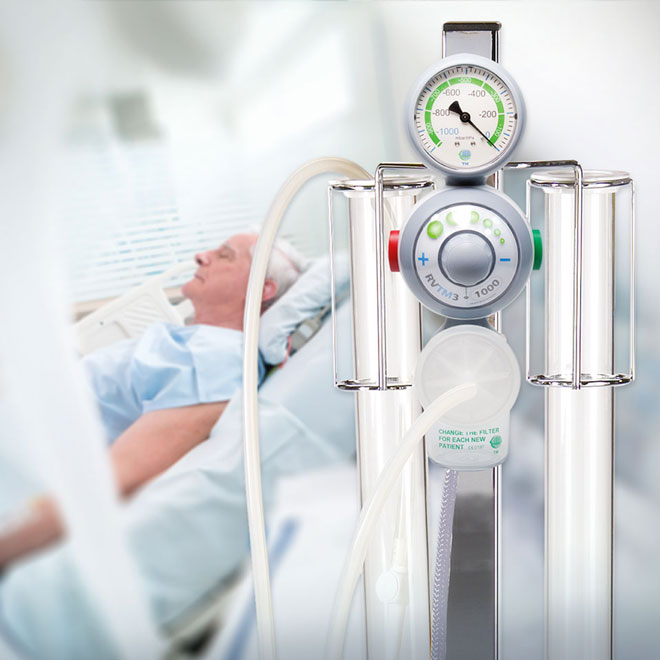

AEROsuc® – Vacuum Regulators

Vacuum regulators according to DIN EN ISO 10079-3, for medical or surgical suction, for the connection to DIN couplings or wall boxes / vacuum lines in hospitals (ZGA). Available with different vacuum ranges, manometers and connections.

AEROsuc® – Suction Injectors

Suction injectors according to DIN EN ISO 10079-3, for the suction of liquids and secretions, with ZGA plug (AIR / O2) for the connection to DIN couplings or wall boxes / compressed air or oxygen lines in hospitals (ZGA). Different models, manometers and connections available.

AEROsuc® - Components for Suction Devices | Portable - Pneumatic

Single components for the individual composition of portable suction devices. Possible configuration with different vacuum regulators or suction injectors with overflow container and bacterial filter. Double bracket and suction containers 1000 ml
or 2000 ml, made of polysulfone. Lid with pressure or screw cap and integrated overflow protection.

AEROsuc® - Components for Suction Devices | Mobile - Pneumatic

Single components for the individual composition of mobile suction devices. Possible configuration with different vacuum regulators or suction injectors with overflow container and bacterial filter. Trolley, chrome-plated, with insertions and bracket, available suction containers 1000 ml or 2000 ml, made of polysulfone, quiver as well as lids with pressure or screw cap and integrated overflow protection.

Exemplary presentations | Order and delivery not possible as a set, only as
single components. Suction containers without tubing set.

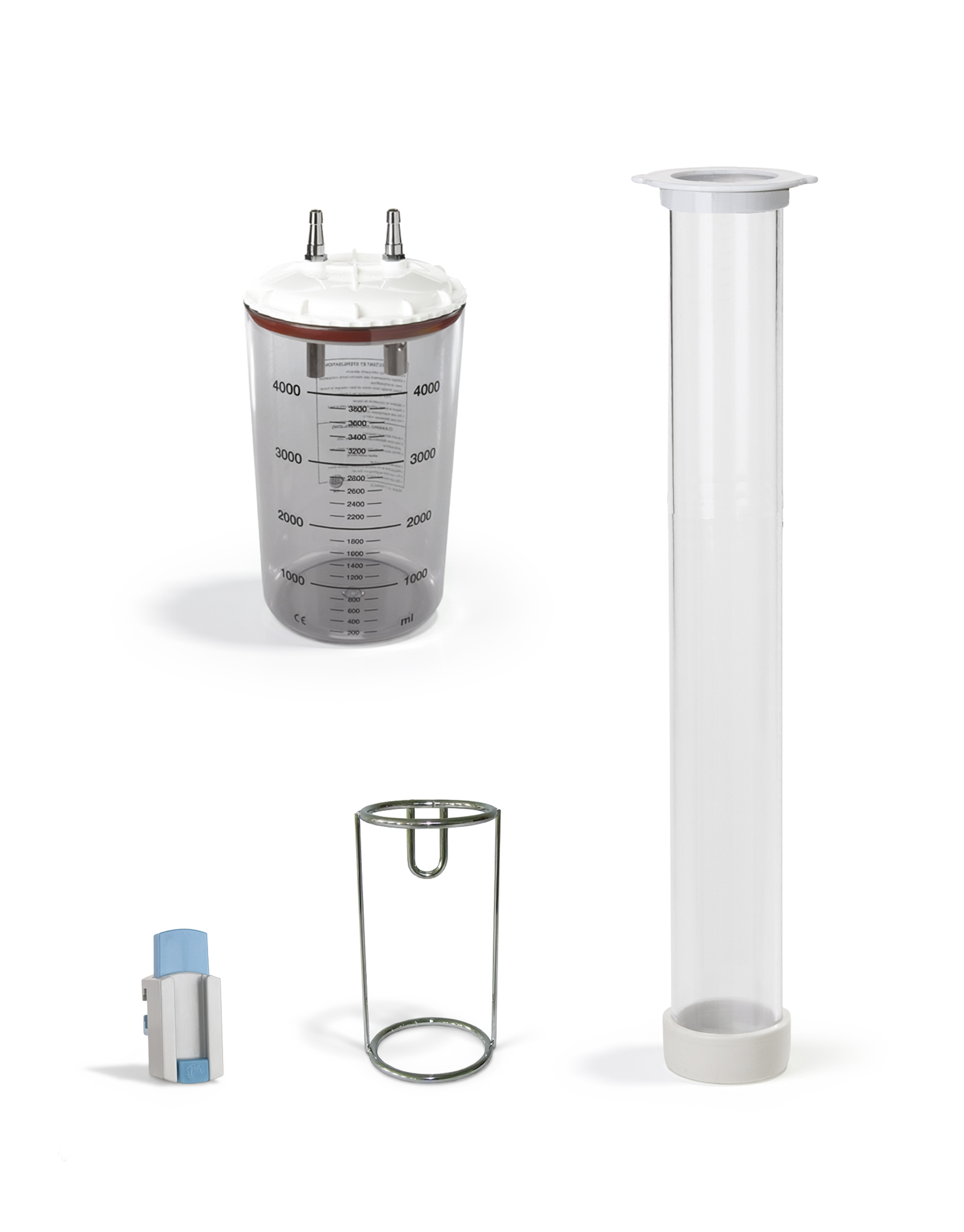

Suction Containers | Quiver Sets | Brackets

Suction Containers
Quiver Sets | Brackets

AEROsuc® – Suction Containers
Containers and Lids

Reusable suction containers for pneumatic suction devices, according to DIN EN ISO 10079-3, made of polysulfone or polycarbonate, 1000 ml | 2000 ml | 4000 ml. Lid with screw cap (metal) or pressure cap (polypropylene, silicone), with integrated overflow protection. With integrated bracket for wall rail claw, separately available for 4000 ml.

AEROsuc® – Brackets for Suction Containers

Single, double or standing brackets for suction containers, chrome-plated. Wall-mounted models with bracket for wall rail claw.

AEROsuc® – Quiver Sets and Individual Parts

Quiver sets with polycarbonate quivers, length 400 mm or 500 mm, wall rail claw and chrome-plated single or double brackets with integrated bracket for wall rail claw and items that can be ordered individually, for storing suction catheters.

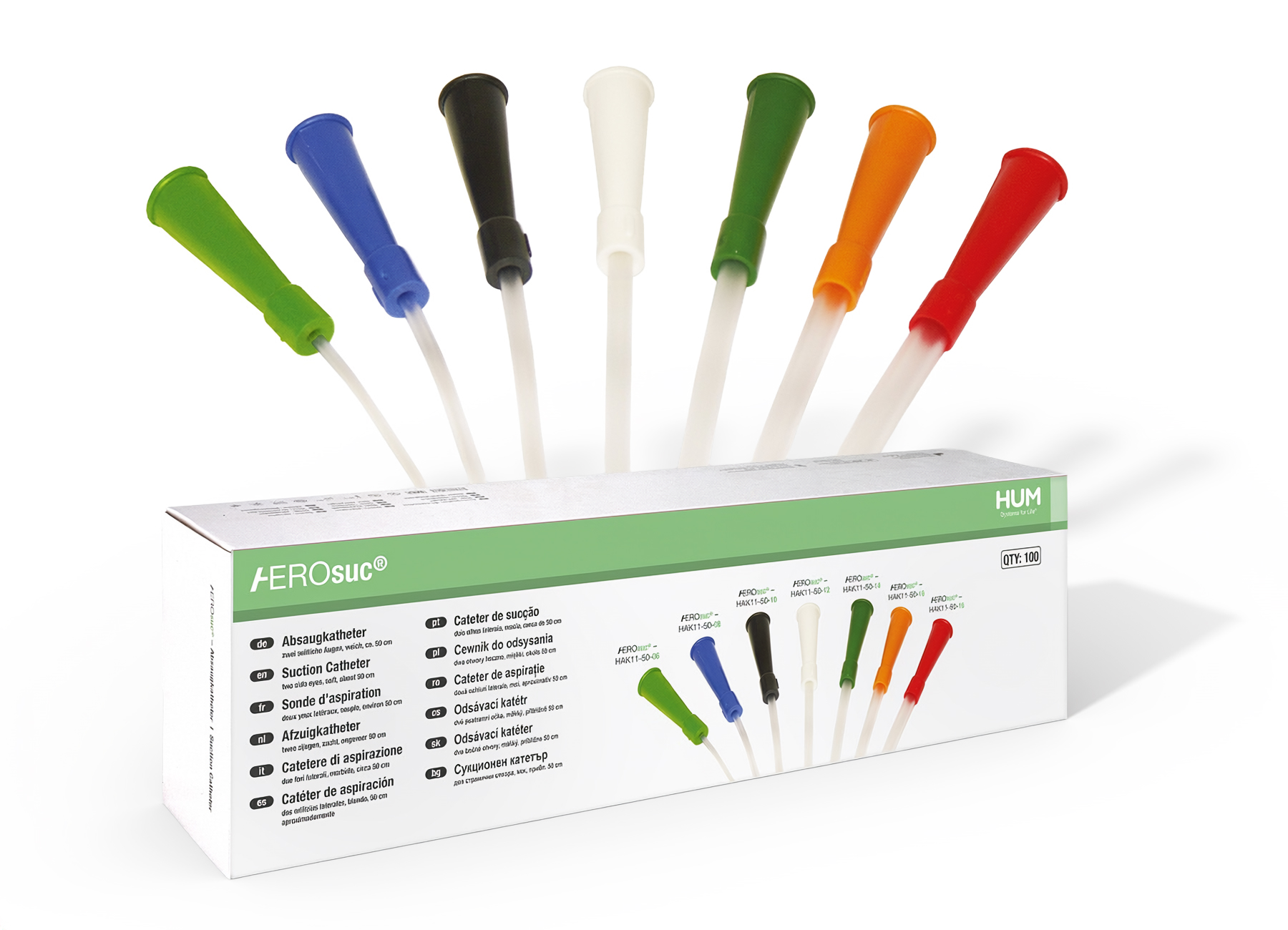

Suction Catheters

Suction Catheters

AEROsuc® – Suction Catheters

Suction catheters made of latex-free PVC, with soft medical tube quality (70 ± 2 Shore A). Length approx. 30 cm and 50 cm, individually sterile packed. Good gliding properties, central opening and 2 lateral eyes that prevent the catheter tip from being sucked, atraumatic rounded catheter tip for minimal irritations of the mucous membranes.

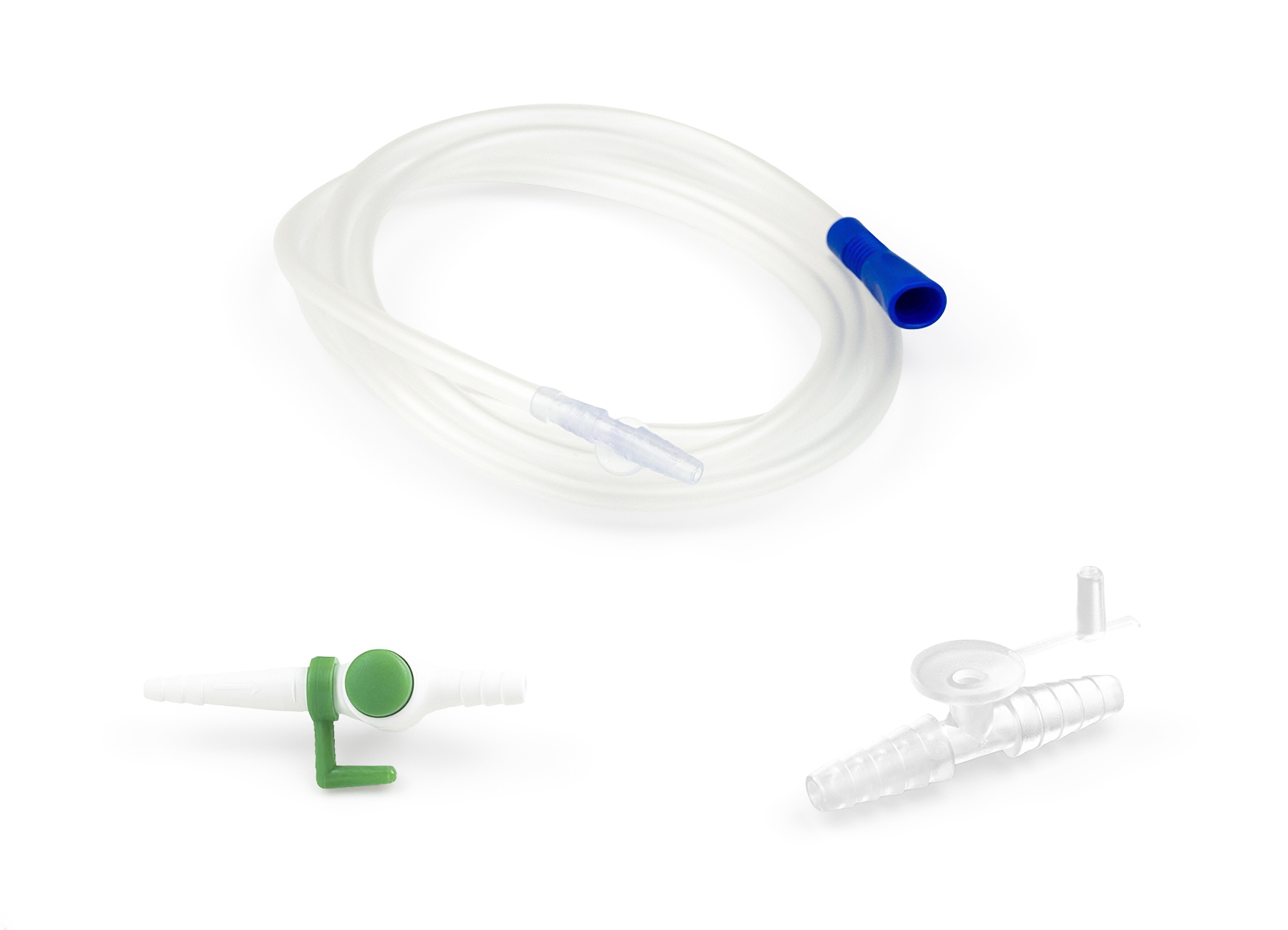

Suction Connection Tubing  |   Suction Interrupters

Suction Connection Tubing
Suction Interrupters

AEROsuc® – Suction Connection Tubing

PVC suction connection tubing with funnel connector and
fingertip suction interrupter, CH 25, length 200 cm, individually sterile packed.

AEROsuc® – Suction Interrupters

Suction interrupters for vacuum control, for use between suction catheter and connecting tubing, different models.

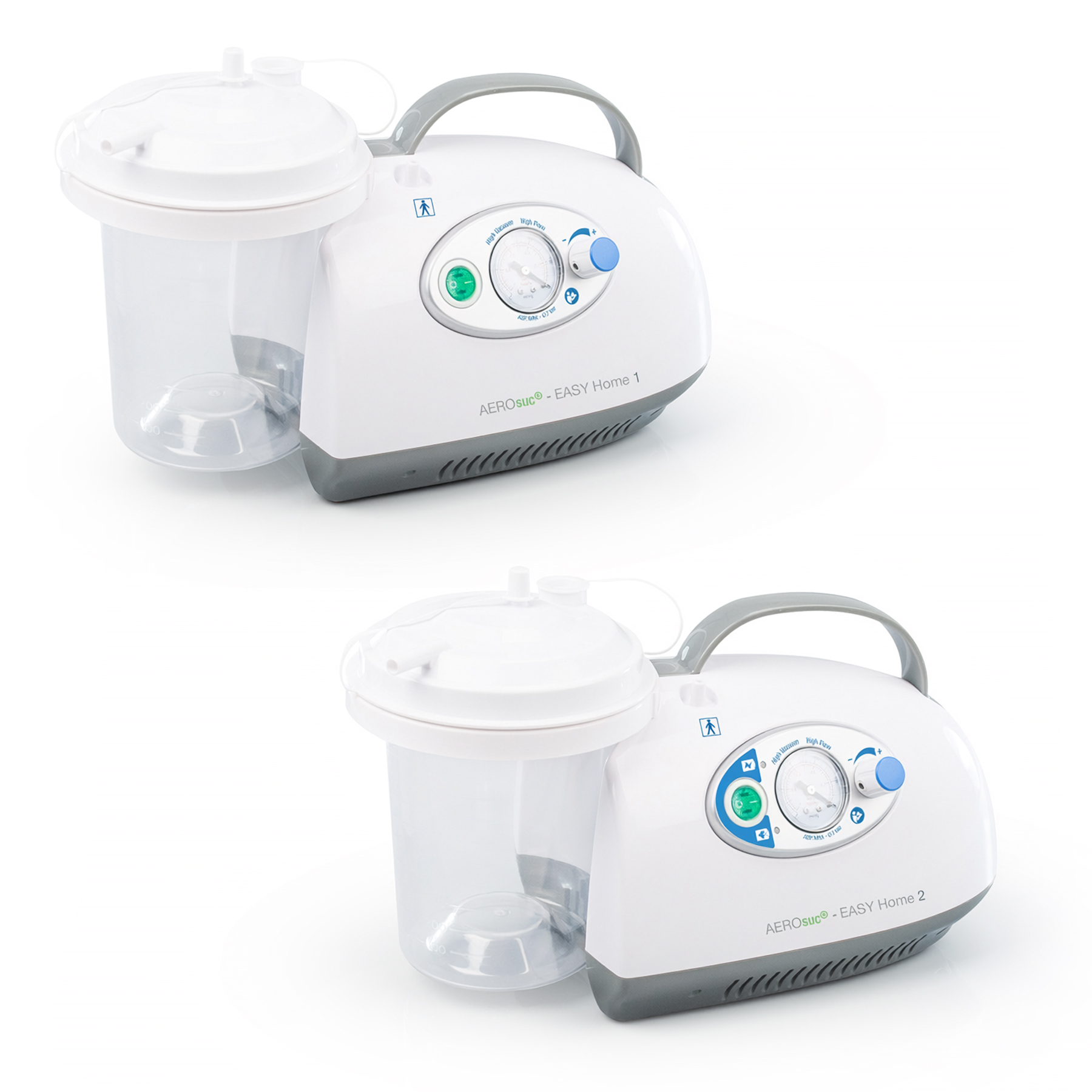

Electric Suction Devices

Electric Suction Devices

AEROsuc® – EASY Home 1
Suction Pump - Mains Version

Electrically operated suction pump for removal of secretions and fluids from the airways as well as infection material from wounds. Max. vacuum ≥ 0,71 bar (≥ 530 mmHg), high flow rate: ≥ 20 lpm, low-noise level: ≤ 60 dB, 1 m distance. Lightweight with 2.4 kg.

AEROsuc® – EASY Home 2
Suction Pump - Battery Version

Electrically operated suction pump for removal of secretions and fluids from the airways as well as infection material from wounds. Max. vacuum ≥ 0,71 bar (≥ 530 mmHg), high flow rate: ≥ 20 lpm, low-noise level: ≤ 60 dB, 1 m distance. Lightweight with 2.8 kg, approx. 50 min continuous battery operation.

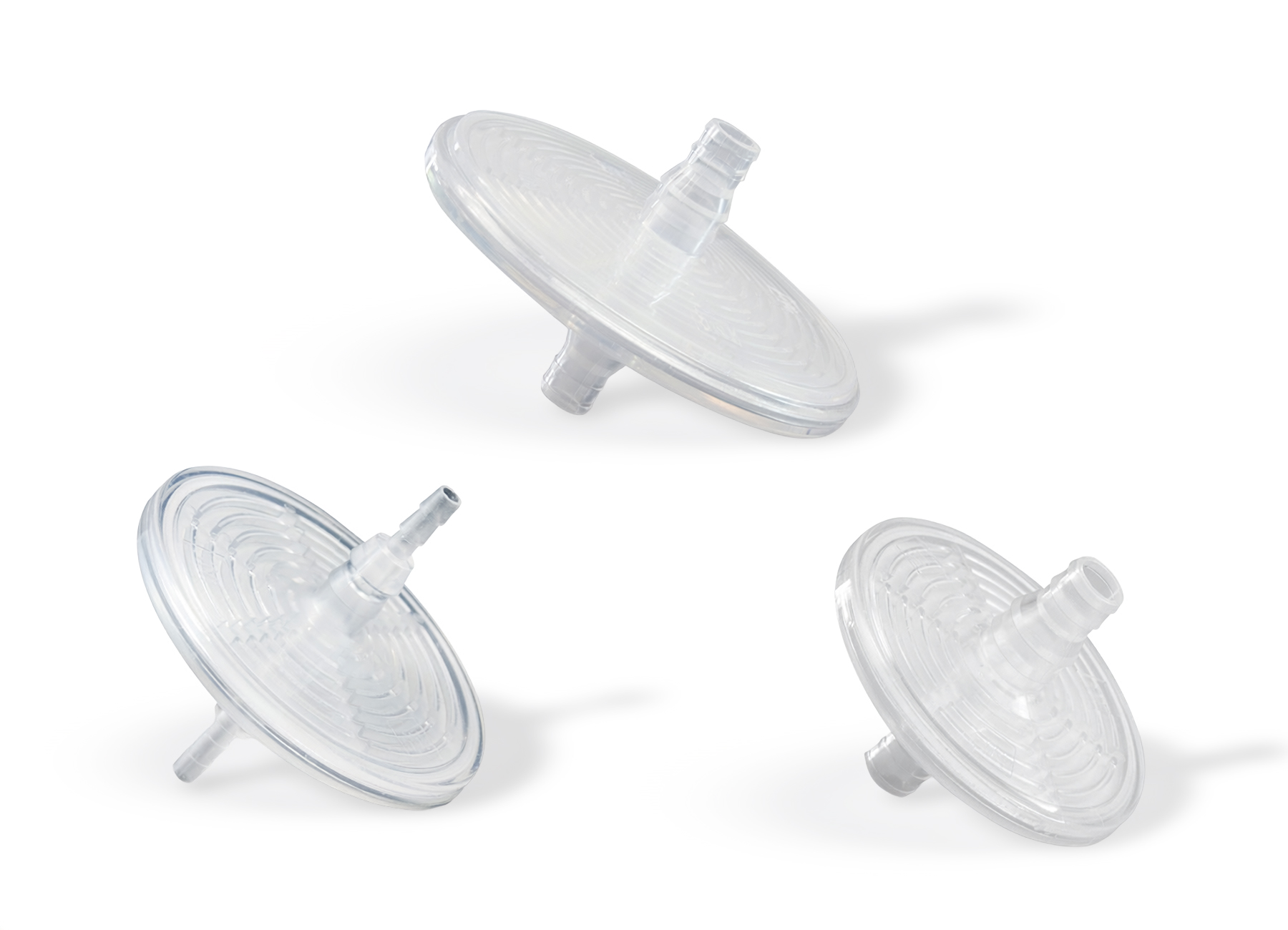

Suction Filters

Suction Filters

AEROvent® – Device Protection Filters
Suction Devices

Bacterial and viral filters for suction devices, high performance, hydrophobic, reliable protection against contaminated air and penetration of liquids into the device interior, available with different connections.
